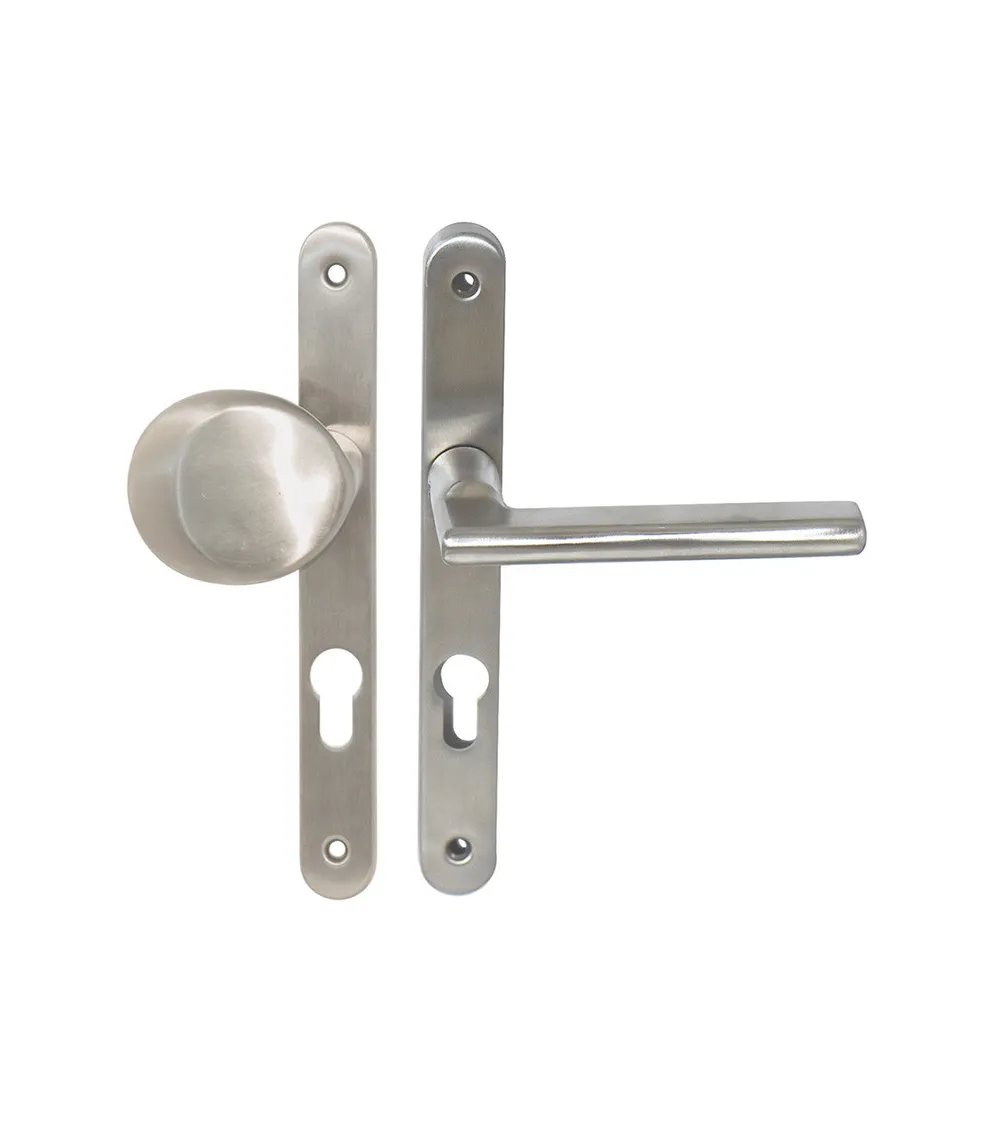

Stainless steel landing set on narrow 26 mm plate Amande/New Pyla

Landing set on narrow 26 mm plate: Amande knob (exterior) + Pyla handle (interior)

Complete set to fit a door (front door, communicating door or French door) on a slim-profile frame, with a landing knob on the exterior side and a movable handle on the interior side. The set is designed for doors fitted with a cylinder lock, with narrow 26 mm plates with rounded ends.

• Brushed matt 304 stainless steel
• Exterior: Amande landing knob, solid and reversible
• Interior: Pyla handle, oblong cross-section, no spring
• Narrow 26 mm plates: suited to slim profiles (aluminium/wood)

Specifications

• Material: 304 stainless steel
• Finish: brushed matt
• Plates: 26 × 230 mm (rounded ends)
• Fixing centre-to-centre spacing: 195 mm
• Cylinder function: 70 mm or 92 mm centre-to-centre (depending on version)
• Compatible door thickness: 66 to 72 mm

Square spindle and adapter (depending on version)

• 7 × 7 mm square spindle
• For the 92 mm centre-to-centre version: compensating sleeve 7 → 8 included

Included

• 1 Amande landing knob on narrow plate (exterior)
• 1 Pyla handle on narrow plate (interior)
• 7 × 7 mm square spindle rod
• Compensating sleeve 7 → 8 (version with 92 mm centre-to-centre spacing)
• Through bolts

This set allows you to fully fit a door with a landing knob on the exterior side and a lever handle on the interior side, while keeping a compact footprint thanks to the narrow 26 mm plates. It is suitable for residential properties, hotels and offices where the frame requires a compact format.
