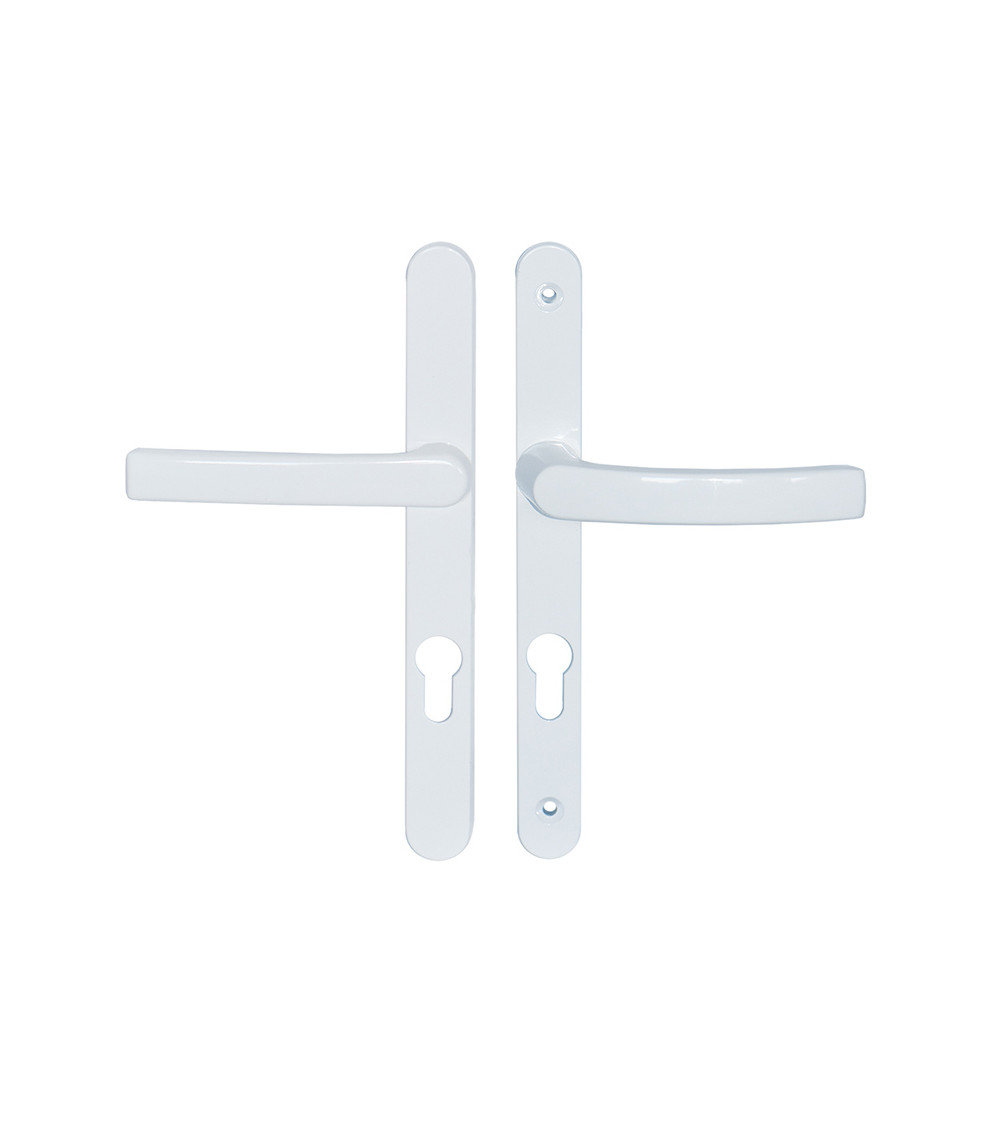

White Handle with Reduced Projection on Narrow Plate 24 mm for Alu/PVC Doors with Roller Shutter - Posy Model

White handle with reduced projection (1 side) on narrow plate 24 mm for alu/PVC doors with roller shutter

This space-saving handle is designed for aluminium and PVC French doors fitted with a roller shutter. The reduced projection on the shutter side brings the handle closer to the door to free up the space required for the curtain to pass through and limit contact during operation.

Key points

• Reduced projection on shutter side: suitable when space is limited.
• Narrow plate 24 mm: recommended for slim aluminium or PVC profiles.
• Robust fixing: plate with pillars for reinforced support.
• Clean finish: fixing screws invisible from outside.
• Without spring: the handle remains in position after action (depending on lock mechanism).

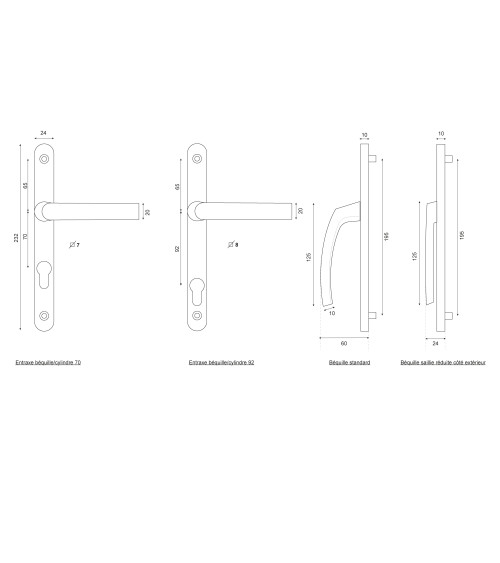

Technical specifications

• Material: lacquered aluminium
• Finish: white
• Plate: narrow 24 mm (rounded ends)
• Total height on reduced projection side: 24 mm
• Fixing centres: 195 mm
• Cylinder hole: 70 mm or 92 mm centres (depending on version)

Square spindle (depending on version)

• 70 mm centres version: 7 × 7 mm square spindle
• 92 mm centres version: 8 × 8 mm square spindle

Included

• Square spindle adapted to chosen version (7 × 7 mm or 8 × 8 mm)
• Through bolts

Installation and compatibility

Set supplied ready to install, with through fixing and pillars ensuring precise alignment. Cylinder and key not supplied: compatibility depends on the lock (70 or 92 mm centres).

Practical solution for French doors with roller shutter, whilst maintaining a discreet white finish and good corrosion resistance thanks to lacquered aluminium.
