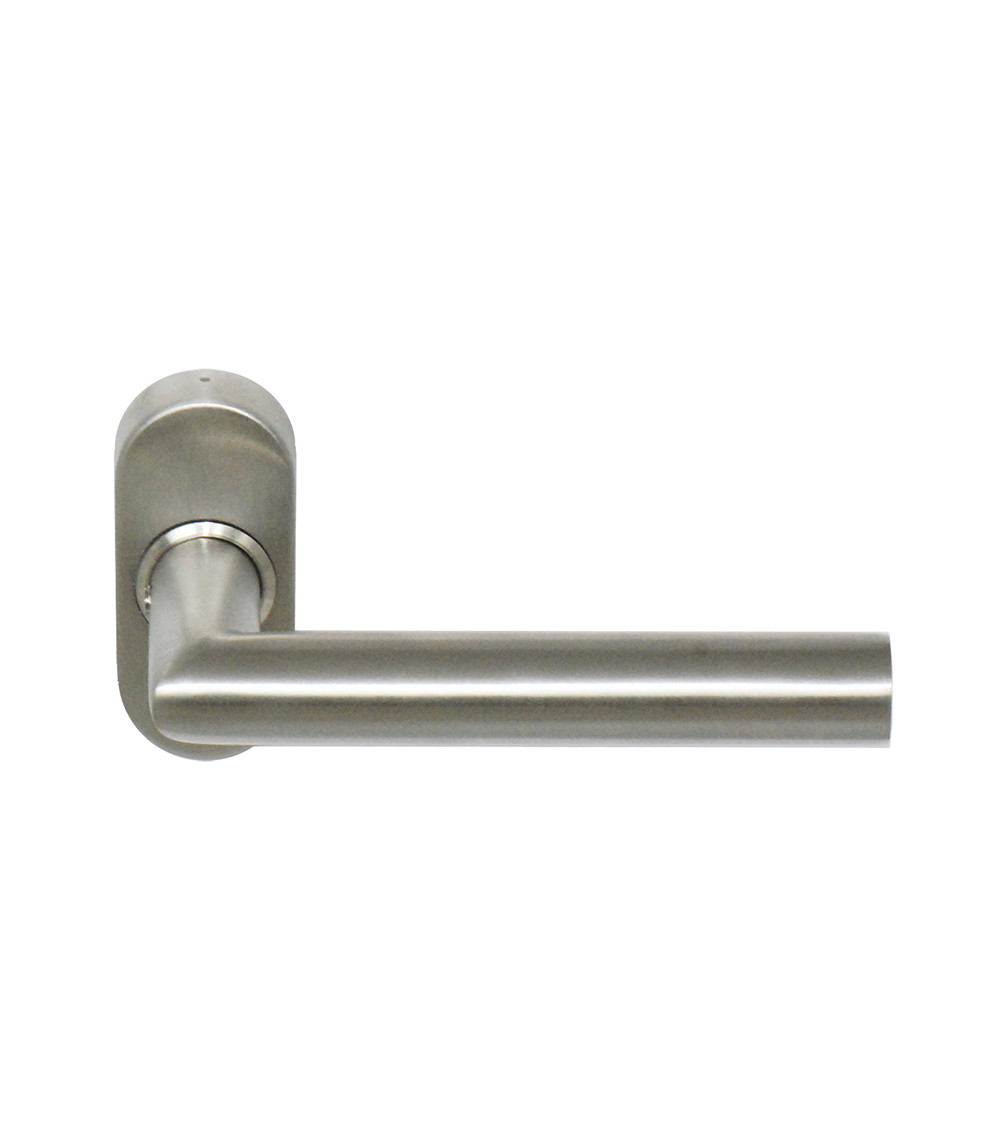

Reinforced door handle on narrow oval escutcheon for aluminium joinery - Altesse model

Reinforced handle on narrow oval escutcheon – Altesse model

The Altesse model is a reinforced handle designed for aluminium joinery, with a compact oval escutcheon. Its design aims for good assembly stability on entrance doors and communicating doors, whilst maintaining a clean line.

Key points

• Special aluminium joinery: reinforced sub-construction in cast iron and zamak.
• Return spring in both directions, with lift function.
• Dual purpose: use on doors, and compatibility with certain applications on aluminium sliding windows.
• Coordinated oval escutcheon: narrow format suitable for thin profiles.

Security option (depending on version)

A version can be offered with oval escutcheon and cylinder protector (anti-drilling), allowing a cylinder projection up to 12 mm from the door.

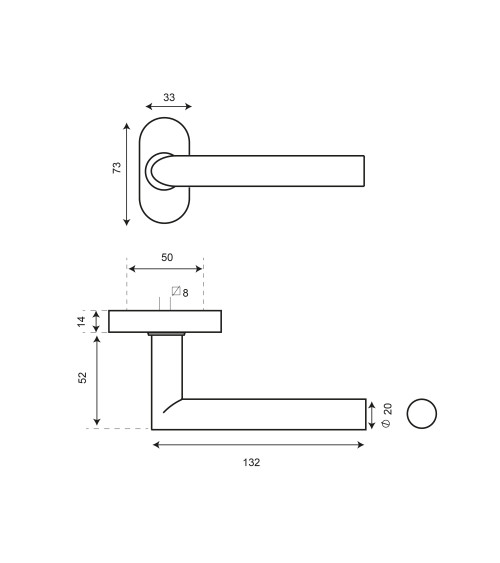

Technical specifications

• Material: 304 stainless steel
• Finish: matt brushed
• Handle: tubular
• Handle spindle diameter: 20 mm
• Handle length: 132 mm
• Escutcheon: oval 33 × 73 mm
• Escutcheon thickness: 14 mm
• Fixing centres: 50 mm
• Spindle: 8 mm

Pack contents

• 1 pair of handles (Altesse model)
• 1 pair of oval escutcheons (cylinder version included)
• Fixing materials and screws (to be adapted to the substrate)

Compatibility and installation

• Designed for doors on aluminium joinery; also compatible with wooden, PVC or steel doors depending on installation configuration.
• For specific profiles, thick joinery or particular requirements, it is recommended to validate the configuration before ordering.
