Reinforced door handle on narrow escutcheon for front door - Bastide model

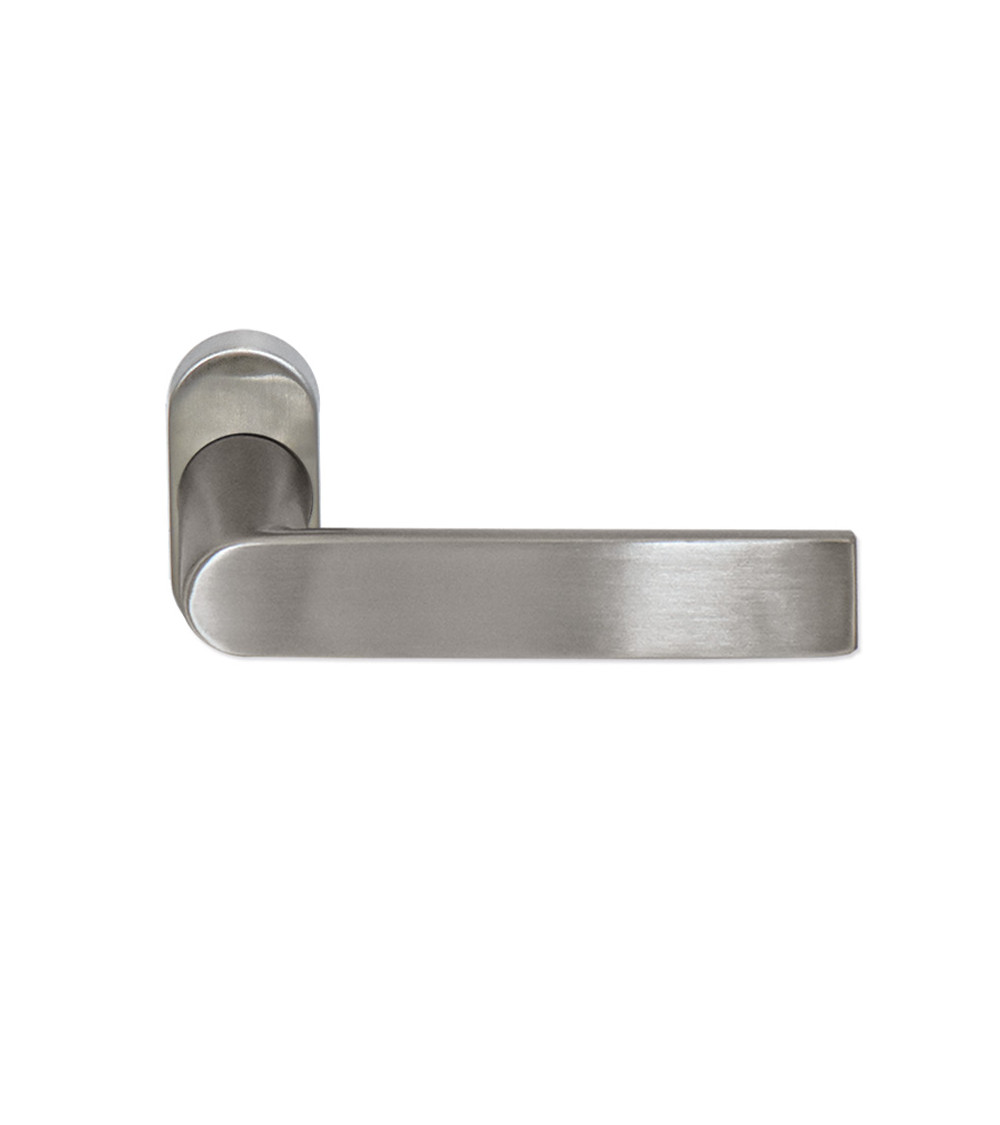

Bastide reinforced handle on narrow escutcheon for aluminium front door

The Bastide model is a reinforced handle designed for aluminium joinery, with a compact oval escutcheon. Its construction is designed for durable use on front doors and internal doors, where robustness and secure mounting are priorities.

Key features

• Designed for aluminium joinery: reinforced sub-construction in cast iron and zamak, suitable for aluminium profiles.
• Brushed matt 304 stainless steel: understated finish, suitable for everyday use.
• Return spring in both directions, with lift function.
• Dual purpose: handle for doors and compatible with certain applications on aluminium sliding windows.

Security (depending on configuration)

A version can be supplied with oval escutcheon and cylinder guard (anti-drilling), allowing cylinder projection up to 12 mm beyond the door face.

Technical specifications

• Material: 304 stainless steel
• Finish: brushed matt
• Lever dimensions: length 130 mm, projection 57 mm
• Profile (half-moon shape): 15 × 26 mm
• Escutcheon: oval 33 × 73 mm
• Escutcheon thickness: 14 mm
• Fixing centre distance: 50 mm
• Spindle: 8 mm
• Compatible door thickness: 40 to 54 mm (other thicknesses possible up to 68 mm: contact us)

Compatibility

• Suitable for front doors and internal doors, particularly on aluminium joinery.
• Compatible with standard fixings (8 mm square spindle, 50 mm centre distance).

Pack contents

• 1 pair of Bastide handles on oval escutcheons (304 stainless steel)
• Fixing hardware and screws
• Depending on version: oval cylinder escutcheon and/or oval escutcheon with cylinder guard

Installation

Recommended mounting with screws suitable for the substrate (aluminium/wood/PVC/steel). For doors over 54 mm thick, please contact customer service to validate the mounting and spindle length.
