Entrance knob on 26 mm narrow plate in 304 stainless steel for cylinder 70/92 - Amande model
€68.00
A solid entrance handle on narrow plate- Sold individually
- Delivery available throughout Europe
- For front doors and French doors fitted with cylinder
- Our After-sales Service responds within 48 hours
Secure payment
Tracked international delivery
Returns and exchanges within 90 days
French after-sales service
You might also like

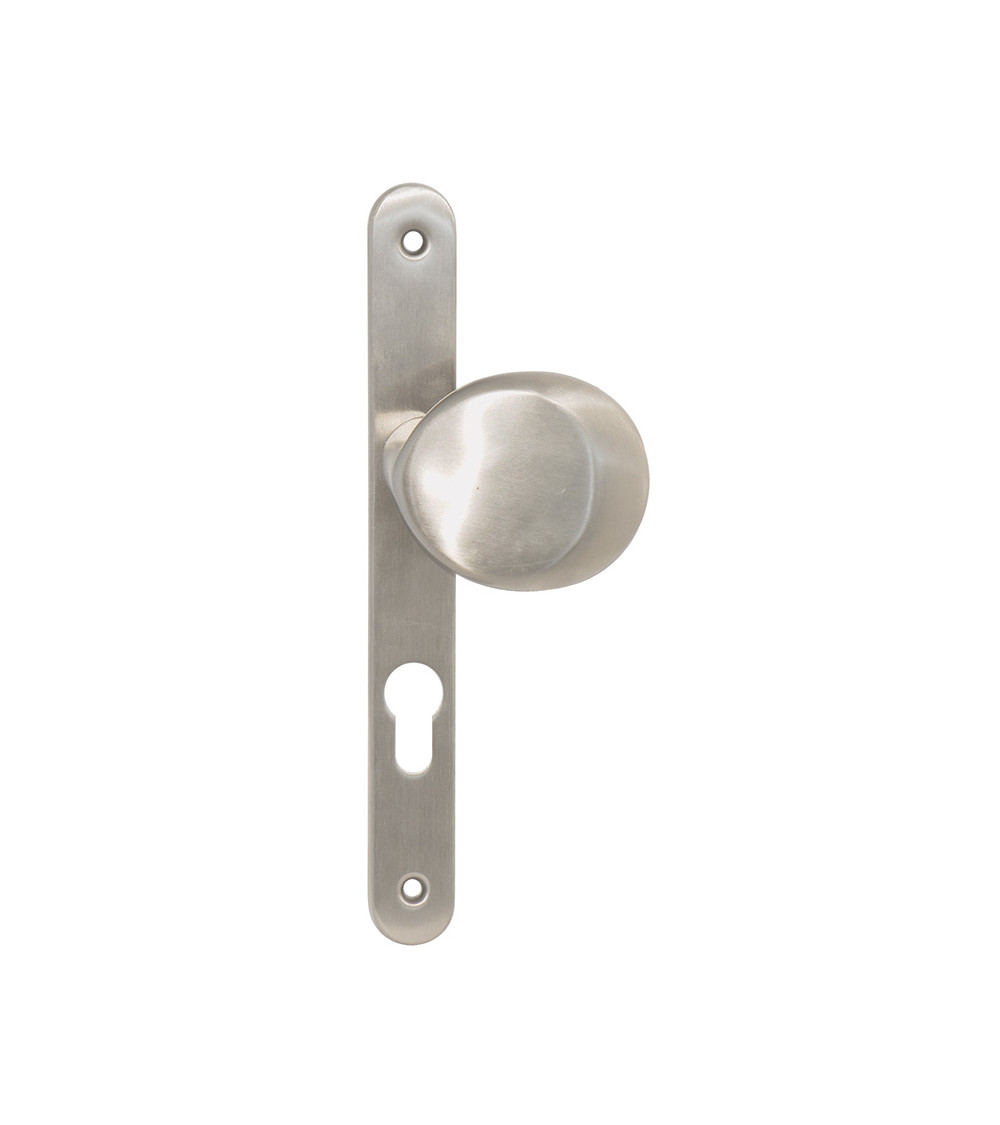

Amande entrance knob on narrow plate for front doors and internal doors (cylinder version)
Fixed entrance knob on narrow plate, designed for thin-profile doors (aluminium/wood) fitted with a cylinder. The Amande model is a solid, reversible piece, suitable for homes, offices and hotels.
Key features
- Sold individually: external entrance knob (fixed, non-moving piece)
- Narrow plate for thin profiles: 26 mm wide, rounded ends
- Cylinder version available in 70 mm or 92 mm centre distance
- 304 stainless steel brushed matt finish
- Compatible internal handle can be added on request (entrance set)

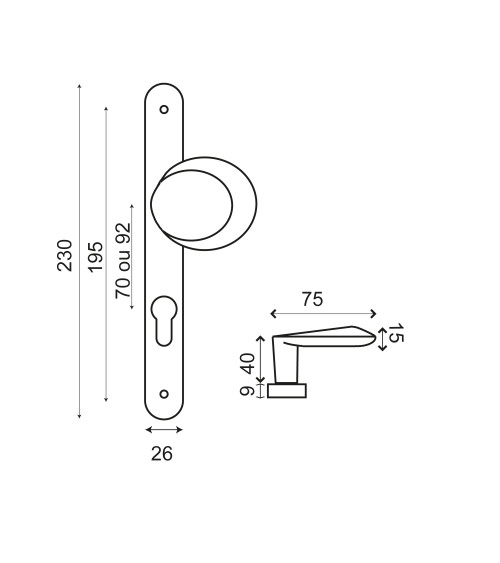

Technical specifications
- Material: 304 stainless steel
- Finish: brushed matt
- Plate: 26 × 230 mm
- Fixing centre distance: 195 mm
- Function: cylinder (centre distance 70 mm or 92 mm)
- Door thickness: to be specified when ordering
Spindle and screws
- 7 mm spindle (supplied)
- For 92 centre distance version: compensating sleeve 7 → 8 (supplied)
- Screws supplied for doors 66 to 72 mm thick
Included
- Amande entrance knob on narrow plate
- Through screws
IN195PACI26-70
Data sheet
- Style
- Original
- Material
- Stainless steel 304
- Backplate | rose thickness
- 9mm
- Mounting accessories
- Screws, Adaptors, Square spindle
- Unit of sale
- Per piece
- Type of lock
- Barrel key
- Use
- Interior/Exterior
- Fixings
- Through fixing screws
