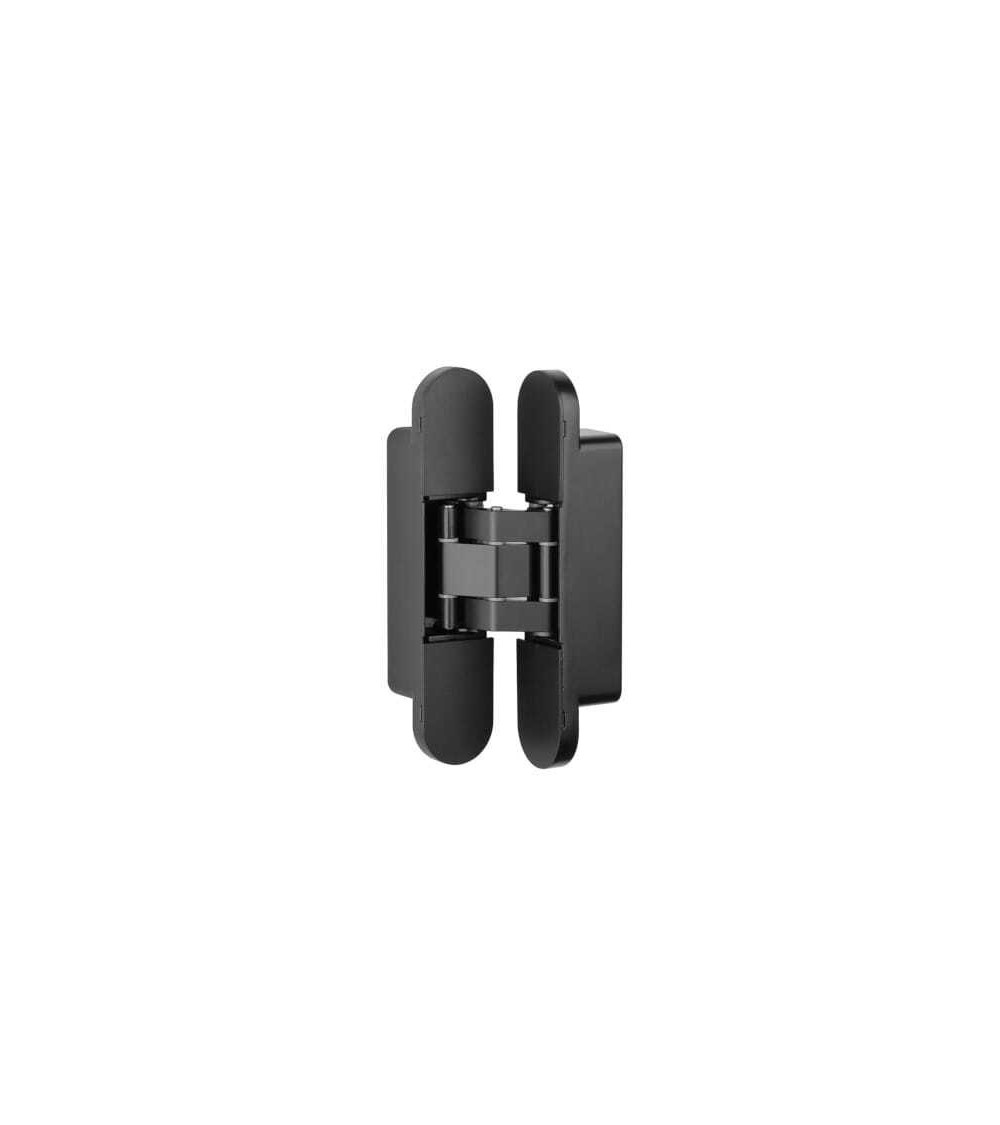

3D hinge for an invisible door
€38.00
3D hinge for universal use, to be installed on interior doors.
Secure payment
Tracked international delivery
Returns and exchanges within 90 days
French after-sales service
You might also like

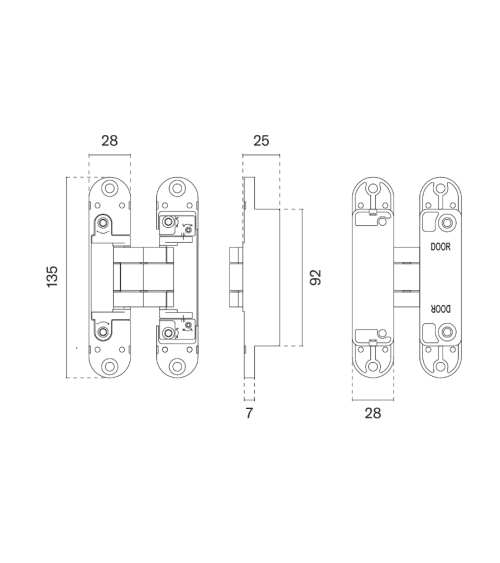

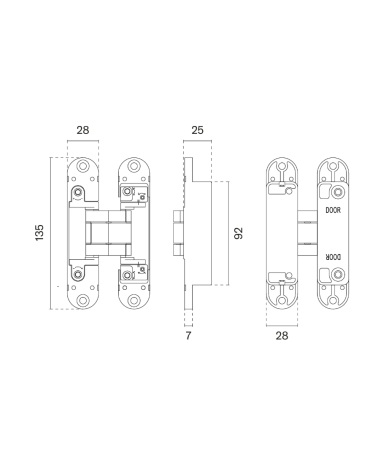

Parameters:
Maximum door weight (for two hinges): 60 kg
Door thickness: 38 - 55 mm
Maximum door dimensions: 90 x 210 cm
Up/down adjustment range: +/- 2.5 mm
Left/right adjustment range: +/- 2 mm
Front/back adjustment range: +/- 1 mm
The set includes:
One hinge piece
4 grid pieces
4 screws (5x30)
2 M4 through bolts
S2 Allen key
S4 Allen key
A minimum of two hinges is required to fix a door.
New product, 24-month manufacturer's warranty.
