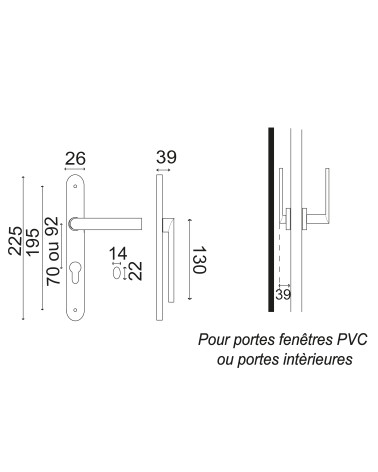

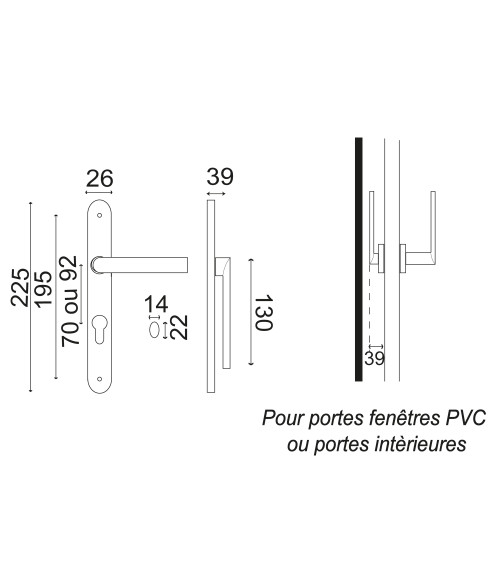

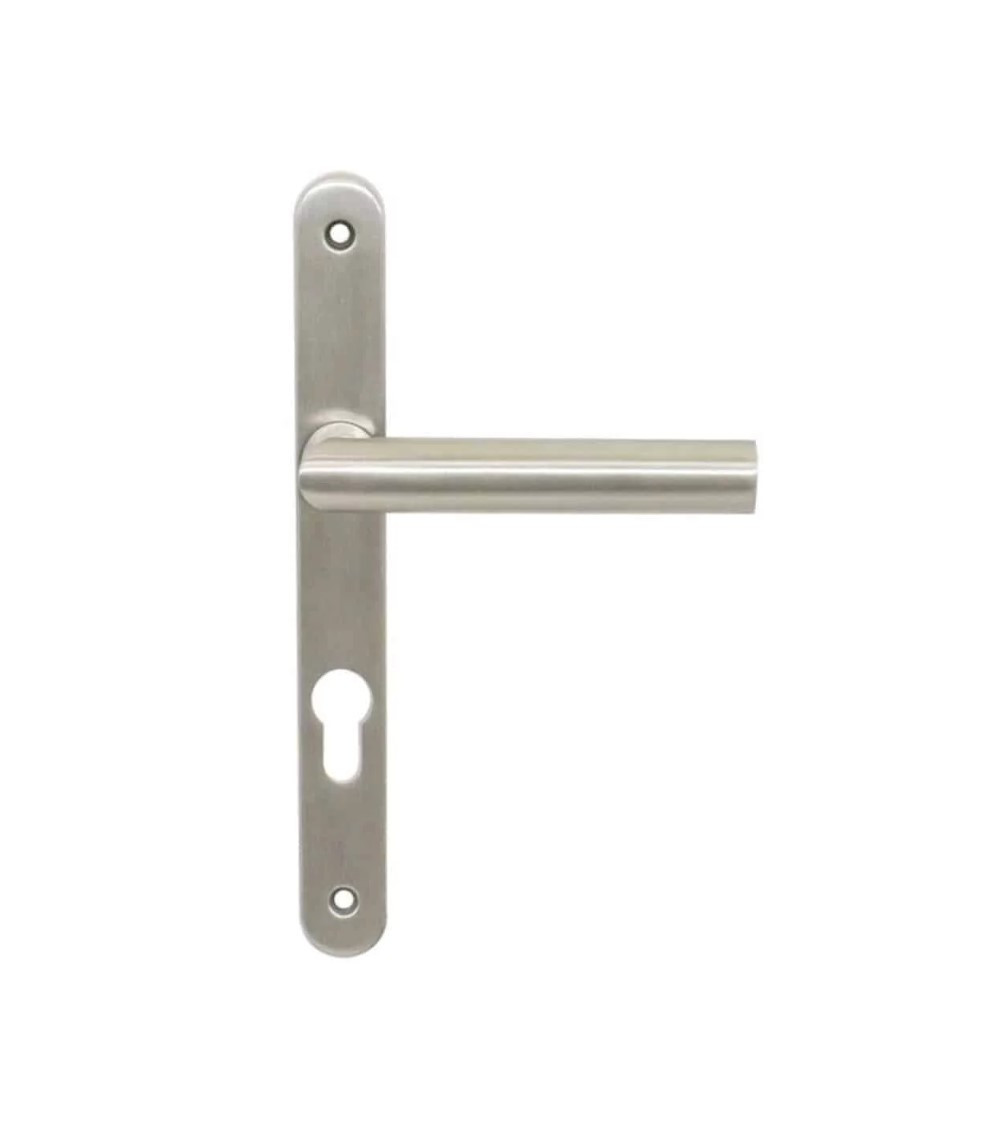

Reduced projection handle on narrow 26 mm plate for roller shutters and double communicating doors - Altesse model

Pair of handles on narrow plates, designed for configurations where handle-side bulk must remain minimal. The reduced projection brings the lever closer to the door, facilitating use on double communicating doors and French windows fitted with roller shutters.

Features

• Pair of handles (left + right)
• Thin and narrow plate: 26 mm width
• Available with 70 mm or 92 mm cylinder centres
• Material: stainless steel 304
• Finish: brushed stainless steel
• Handle without spring, with reduced projection for space saving
• Through-screw mounting for robust fixing
• Manufacturer's warranty: 24 months

Door thickness and adaptation

• Screws supplied for doors 66 to 72 mm thick
• For thicker doors or specific configurations (e.g. lift-off): prior contact recommended

Square spindle (stem) depending on version

• 70 mm centres version: 7 × 7 mm square supplied
• 92 mm centres version: 7 × 7 mm square + 7 → 8 mm compensating sleeve supplied

Included

• Mounting adapters
• 7 × 7 mm square spindle
• M4 screws, through screws and Allen key (assembly)
• Installation instructions and video support

Description

This stainless steel 304 handle on a narrow 26 mm plate is suited to installations where space around the joinery is limited. The brushed stainless steel finish is stable over time and suitable for both residential and commercial use. The through-fixing and supplied accessories facilitate precise installation on cylinder doors with 70 mm or 92 mm centres.

The reduced projection is particularly relevant when the handle must remain close to the door, for example on French windows with roller shutters or on communicating doors where two handles face each other. This configuration limits bulk and prevents contact, whilst retaining brushed stainless steel hardware on a narrow plate.

Also discover our selection of reduced projection door handles.
